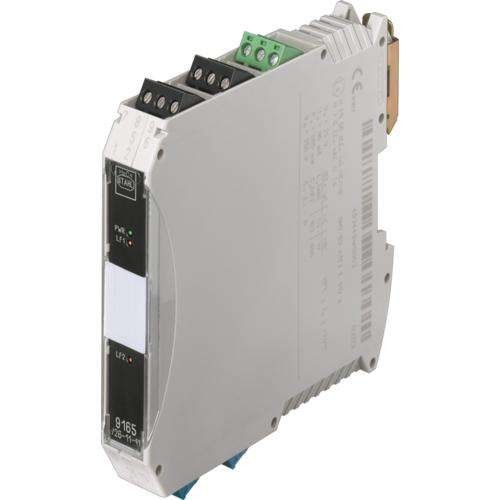

STAHL Trennübertrager 201271

9165 series isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The channels in the two-channel variants are galvanically separated from one another. ISpac, Isolating repeater, Ex i field circuit, explosion-protected, Type : 9165/16-11-11k, Number of channels : 1, Connection type : Spring clamp terminal, Grid dimension : 17,6 mm, Output : 0/4 to 20 mA with HART, Nominal voltage : 24 V DC, SIL : 2, min. ambient temperature : -20 °C, max. ambient temperature : +70 °C, Application range (zones) : 2, Gas explosion protection : II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc, Dust explosion protection : II (1) D [Ex ia Da] IIIC, For further information, see : r-stahl.com WebCode 9165A
