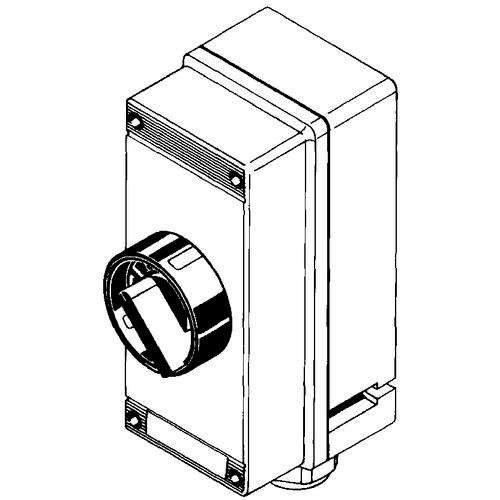

STAHL Timer 217595

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The 3 combinable design sizes and the modular structure offer flexibility. You can choose from one standard version and customised variants. Control device system, ConSig 8040 series, explosion-protected, Type : 8040/1290Z -01L51BA02, Rated operational current : 4 A, Enclosure material : Polyester resin, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex db eb mb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db, min. ambient temperature : -20 °C, max. ambient temperature : +40 °C, Degree of protection (IP) : IP66, Centre installation position : Pushbutton, Black- "
L"
, Centre built-in element : ZMU3-230 V AC timer, Bottom cable entry : 1 x M20 Ø 6 to 13 mm, Top cable entry : 1xM20 Ø 6 to 13 mm, Flange and plates : Without flange, without plates, For further information, see : r-stahl.com
