STAHL Pilzdrucktaster 244642

Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN 60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series.The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "
latching/spring return"
and/or "
key not removable"

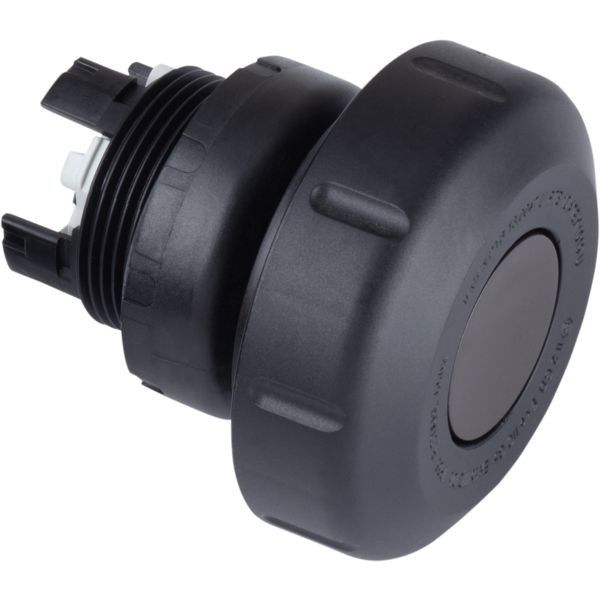

functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available. Mushroom pushbutton 55 mm, Black, explosion-protected, Type : 8602C3-703-B, Enclosure material : Polyamide, Seal : Standard, Fastening : Thread type, Designation plate : black, blank label w/o text, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex eb IIC Gb, Dust explosion protection : II 2 D Ex tb IIIC Db, min. ambient temperature : -20 °C, max. ambient temperature : +60 °C, Degree of protection (IP) : IP66, Packaged : Yes, Packaging unit : 1 Pcs, For further information, see : r-stahl.com WebCode 8602A
