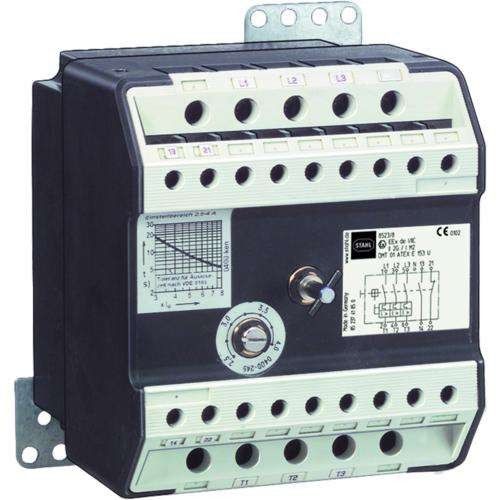

STAHL Leistungsschalter 8523/82-07-127
Art.Nr.: 908813
Lieferzeit: 7-14 Arbeitstage
Leistungsschalter 8523/82-07-127
Hersteller: STAHL
Hersteller-Art.Nr.: 217732
EAN: 4046827077975
Ursprung: Deutschland
Zolltarif: 85362010
R. STAHL Series 8523/8 motor protection moulded case circuit breakers are equipped with a non-adjustable fast short-circuit release and a thermal overcurrent release adjustable at the switch. The switches are operated via a rotary actuator, whereby the switch position is always easy to see. You can set the various current ranges. Moulded case circuit breaker For motor protection, explosion-protected, Type : 8523/82-07-127, AC rated operational voltage : 690 V, Min. current-setting range : 1,6 A, Max. current-setting range : 2,5 A, No. of poles : 3, Release : Undervoltage release, AC release voltage : 400 V, Auxiliary contacts : 1 NC + 1 NO, Connection cross-section : 1,5 ... 10 mm2 Finely stranded, 1,5 ... 10 mm2 Solid, Aux. cont. conn. cross-section: 0,75 ... 1,5 mm Finely stranded, 0,75 ... 2,5 mm Solid, Enclosure material : Epoxy resin or polyester resin, Enclosure size : 130 mm x 115 mm x 11, Application range (zones) : 1 , 2, Gas explosion protection : II 2 G Ex db eb IIC, Firedamp protection : I M2 Ex db eb I, min. ambient temperature : -20 °C, max. ambient temperature : +60 °C, Service life, min. : 10^5 operating cycles, For further information, see : r-stahl.com WebCode 8523A
Merkmale: | |
Überlastauslöser Stromeinstellung | 1,6..2,5 A |
Einstellbereich des unverzögerten Kurzschlussauslösers | 0 A |
Mit thermischem Schutz | nein |
Phasenausfallempfindlich | ja |
Auslösetechnik | thermomagnetisch |
Bemessungsbetriebsspannung | 0..690 V |
Bemessungsdauerstrom Iu | 2,5 A |
Bemessungsbetriebsleistung bei AC-3, 230 V | 7 kW |
Bemessungsbetriebsleistung bei AC-3, 400 V | 12,4 kW |
Anschlussart Hauptstromkreis | Schraubanschluss |
Ausführung des Betätigungselements | Drehknopf |
Gerätebauart | Einbaugerät Festeinbautechnik |
Mit integriertem Hilfsschalter | ja |
Mit integriertem Unterspannungsauslöser | ja |
Polzahl | 3 |
Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V, AC | 15 kA |
Schutzart (IP) | IP20 |
Höhe | 130 mm |
Breite | 115 mm |
Tiefe | 110,5 mm |
