STAHL Kombinationssignalgerät 225072
Art.Nr.: 1069280
Lieferzeit: 7-14 Arbeitstage

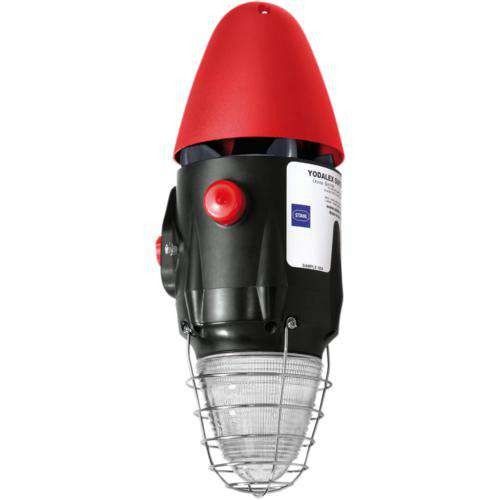

Kombinationssignalgerät 225072
Hersteller: STAHL
Hersteller-Art.Nr.: 225072
EAN: 4046827083839
Ursprung: Deutschland
Zolltarif: 85311095
Product series YL6S is designed to provide both an audible and visual alarm which can be used to alert, warn or draw attention to machine malfunction/start up or any number of safety related issues. The audible and visual signals can be operated independently or as a combination unit. Corrosion resistance is a key feature of the device which is ideally suited for applications in the harshest of environments both onshore and offshore. Combined signal device, Xenon horn/flashing beacon, In flameproof enclosure, explosion-protected, Type : YL6S/C-D-050-C-EN-SF-A-ST-00-, Enclosure material : Polyester, Glass fibre reinforced, Enclosure colour : Black, Dome material : Polycarbonate, prismatic, AC rated operational voltage : 0 V, DC rated operational voltage : 24 V, Tolerance : -10 ¿ 10 %, Rat. op. cur., flashing beacon: 320 mA, Rat. operational current, horn: 280 mA, Rated operational current : 600 mA, Lamp : Xenon flash tubes, Lens colour : Clear, Flashbulb : 5 J, Flash rate : 1 Hz, Number of lamps : 1, Effective luminous intensity : 62 cd, Volume control : 18 dB (A) adjustment, IP degree of prot. (IEC 60529): IP66/IP67, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex d IIC T5/T4 Gb, Dust explosion protection : II 2 D Ex tb IIIC T95 °C /T110 °C Db, min. ambient temperature : -60 °C / -60 °C, max. ambient temperature : +40 °C / +55 °C, Min. service temperature : -50 °C, Max. service temperature : +55 °C, Option 1 : -, part material : Provided, Cable glands and entries : Can be ordered as accessories, Stopping plugs : 2 x dust cap, For further information, see : r-stahl.com WebCode YL6SA
Merkmale: | |
Nennspannung | 24 V |
Stromart | DC |
Stromaufnahme | 600 A |
Leistung | 5 W |
Kalottenfarbe | weiß |
Leuchtmittel | Xenon |
Lautstärke | 110 dB |
Art des optischen Signals | Blitzlicht |
Art des akustischen Signalgebers | Hupe |
Art des akustischen Signals | programmierbar |
Montageart | Aufbau |
Gehäusefarbe | schwarz |
Schutzart (IP) | IP67 |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 21, 22 |
Mit Kontakt | ja |
Entspricht EN 54-23 | nein |
Geeignet für Wandmontage | ja |
Geeignet für Deckenmontage | nein |
Kompatibel mit Apple HomeKit | nein |
Kompatibel mit Google Assistant | nein |
Kompatibel mit Amazon Alexa | nein |
IFTTT-Unterstützung verfügbar | nein |
